Product Details:
Payment & Shipping Terms:
|
| Item Name: | ESD Garments Clothes | Material: | Polyester Filament With Conductive Fiber |
|---|---|---|---|
| Color: | Yellow, White, Pink, Blue | Size: | S,M,L-4XL |
| Features: | Wear Comfortable, Durability, Soft | Common Styles: | Clean Clothes (all-over Suit + Shawl Hat + Shoe Cover) |
| Material: | Ployester+Conductive Fiber | Conductive Yarnin: | 0.5cm Grid, 0.5cm Stripes, 0.25cm Grid |
| Brand Name: | QS | Surface Resistivity: | 1x105-109 Ω |
| Highlight: | 0.5cm grid dust proof overalls,0.5cm grid Anti Static overalls,0.25cm grid dust proof overalls |
||
1. Product description:
Minimises accidents and disasters – Our anti-static garments are a tried-and-tested way to minimise the risk of electrostatic discharges (ESDs), protecting your electronic equipment and your staff in the process.
Practical and comfortable – paying close attention to the design and fit of our clothing. Our anti-static garments are comfortable and form-fitting, ensuring your workers are kept safe and contented as they work.
Tested in the field – Every garment we supply is tested and authorised as an effective measure against hazardous electrostatic discharges.
2. Anti Static Fabric Test Data:
| ITEM | T/C THICK | T/C THIN | Knitting Conductive |
| COMPOSITION | T/C 65%/35% | T/C 65%/35% | Polyester 100% |
| STRUCTURE | 2/1 twill 1.5mm interval of conductive filament | /1 twill 1.5mm interval of conductive filament | Warp-knitted |
| WEIGHT | 240g/m2 | 140g/m2 | 100g/m2 |
| THICKNESS | 0.45mm | 0.28mm | 0.30mm |
| WIDTH | 150cm | 150cm | 170cm |
| DENSITY |
Warp 110 Weft 56 |
Warp 110 Weft 56 |
Weft 32 |
| YARNTYPE |
Warp T/C J34s/2 Weft T/C J34s/2 |
Warp T/C J34s Weft T/C J34s |
68D |
| SURFACE RESISTIVITY | 108~1010Ω/unit | 108~1010Ω/unit | 108~1010Ω/unit |
| ELECTRICATION POTENTIAL | 4.24µc/m2 | 4.15µc/m2 | 0.1µc/m2 |
| DECAY TIME | 2.0s | 2.0c | 0.1c |
| AIR PERMEABILITY | 45c.c/cm2/sec | 150c.c/cm2/sec | 300c.c/cm2/sec |
| TENSILE STRENGTH |
Warp 770N Weft 1720N |
Warp 770N Weft 1720N |
/ |
| TEAR STRENGTH |
Warp 3970gf Weft5310gf |
Warp 2550gf Weft 3300gf |
/ |
| COLOR RETENTION | 4~5 | ||
3. Specification:
| Place of Origin | Suzhou, China |
| Brand Name | qiangsheng |
| Model Number | QS-1003 |
| Material | Ployester+Conductive fiber |
| Color | White,blue,yellow,pink,etc. |
| Size | S-3XL |

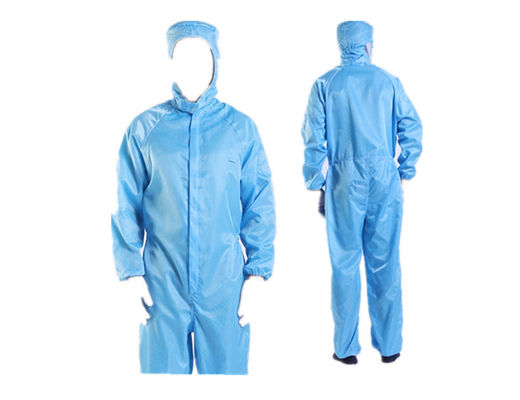

| Style | Cleanroom Coverall with hood |
| Cuff | Elsatic |
| Feature | Dustproof,Washable |
| Logo | Accept embroidery,printing |
| Accessory | Zipper,Snap-fastener |
4. Packing:
Each suit per bag.
Customized packing is available.
