Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Polyester | Feature: | Anti-Static, Waterproof，Washable, Strong Lamination |
|---|---|---|---|
| Density: | 165*89 | Width: | 56/57" |
| Color: | Regular Is White, Other Colors Can Be Customized | Style: | Plain |
| High Light: | 5 Mm Striped Polyester Woven Fabric,Anti Static Polyester Woven Fabric,5Mm Striped Anti Static Fabric |
||
5 Mm Striped Conductive Polyester Anti-Static Woven Fabric
1. Production data sheet
| ITEM |
5MM STRIPE
|
5MM GRID |
2.5MM GRID |
||
|
COMPOSITION |
99% Polyyarn 1% conductive fiber
|
99% Polyyarn 1% conductive fiber |
98%Poly yarn 2% conductive fiber
|
98% poly yarn 2% conductive fiber |
96% poly yarn 4% conductive fiber |
|
WEAVE |
1/2 twill
|
Plain / twill
|
1/2 twill
|
Plain / twill (3/2twill) |
2/3 twill
|
|
WEIGHT g/m2 |
125 | 110 | 125 | 110 | 130 |
| YARN TYPE | 100D | 75D | 100D | 75D | 100D |
| WIDTH | 150 cm | 150 cm | 150 cm | ||
| AIR PERMEABILITY | 30 c.c/cm 2/sec | 30 c.c/cm 2/sec | 18 c.c/cm 2/sec | ||
| SURFACE RESISTIVITY | 106 ~ 108 ohm/unit | 106 ~ 108 ohm/unit | 105 ~ 107 ohm/unit | ||
| FRICTION CHARGES | < 300 V | < 100 V | < 15 V | ||
|
ELECTRICAL POTENTIAL |
0.4 μC/m2 |
0.3 μC/m2 |
0.1 μC/m2 |
||
| DECAY TIME | 1.0 sec | 0.5 sec | 0.1 sec | ||
| PARTICLE GENERATION | 60%--80% | 60%--80% | 80%--90% | ||
| TEAR STRENGTH |
Warp 4100gf Weft 6250gf |
Warp 4170gf Weft 6000gf |
Warp 4500 Weft 6050gf |
||
| TENSILE STRENGTH |
Warp 820N Weft 1590N |
Warp 830N Weft 1580N |
Warp 860N Weft 1270N |
||
| COLOR RETENTION | 4-5 | ||||
2.Product Description:
High quality anti-static polyester dust-proof work clothes fabric, made of polyester yarn.
Operating personnel wearing comfortable, grounded or anti-static anti-static clothing is the most effective protection measures for the company.
Antistatic fabrics are guaranteed to pass the Antistatic Association standard and continue to protect your products.
We also offer a wide variety of colors, fabrics and styles.

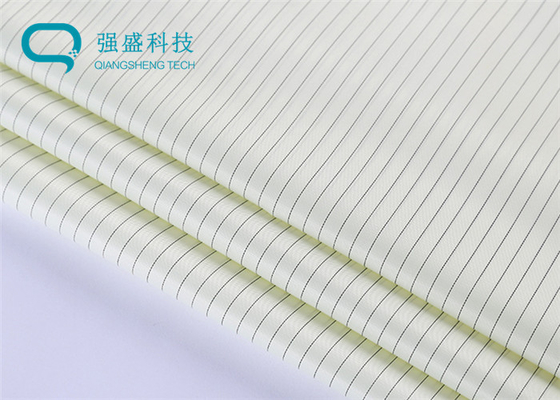

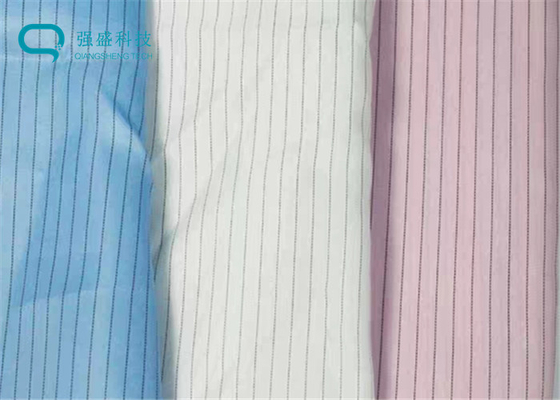

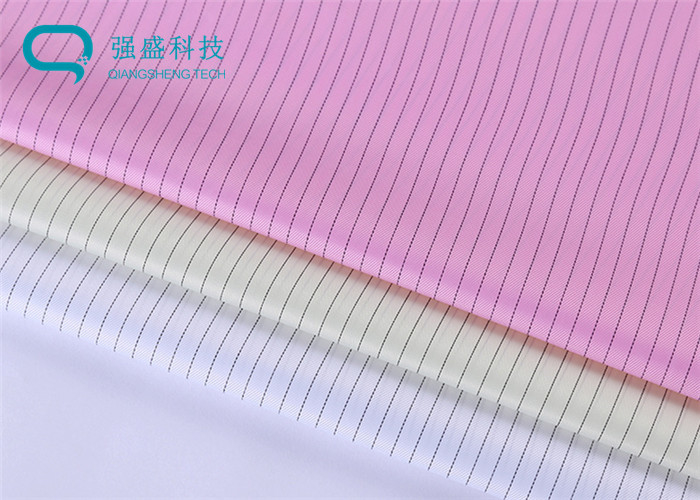

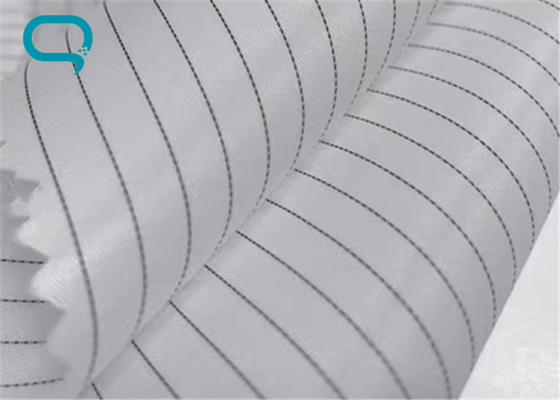

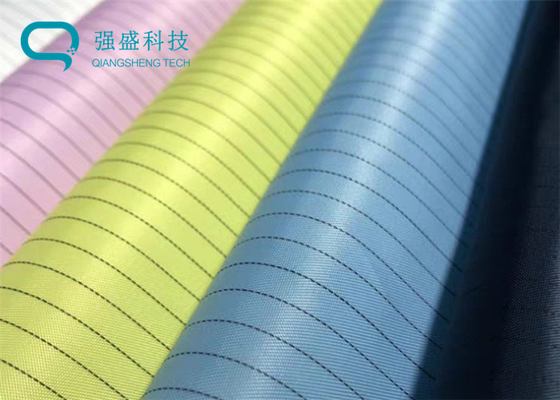

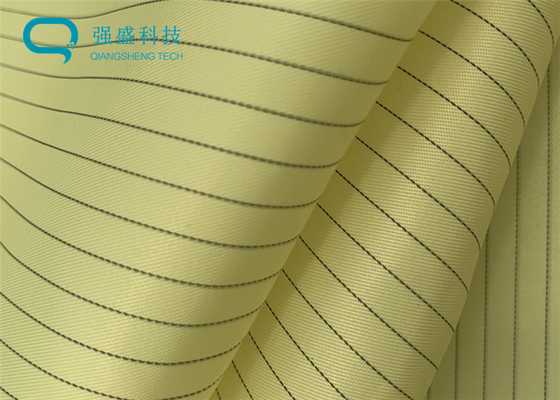

3. Picture
