Product Details:
Payment & Shipping Terms:
|
| Name: | ESD Rubber Mat | Color: | Blue,grey, Green... |
|---|---|---|---|
| Thickness: | 1.6-5mm | Length: | 10-30m/roll |
| Width: | 0.3-3 Meters | Material: | Rubber |
| High Light: | Anti Static Mat,antistatic esd mat,esd workbench mat |
||
Description:
| 1 | ESD Rubber Mats are made of two layers with the top one as a static dissipative rubber layer laminated to a black conductive to the bottom layer. |
| 2 | The surface resistivity of the top layer is 10E6-10E9 ohms and the bottom layer is 10E3-10E5 ohms. |
| 3 | ESD Rubber material offers excellent resistance to heat, chemicals, oil, grease and most common solvent. |
Features:
| 1 | High-quality nature rubber ESD Table mat |
| 2 | Resistant to solder Iron and chemical agents |
| 3 | Oil-resistance |
| 4 | Low reflecting |
| 5 | Easy to clean |
| 6 | Anti-skidding surface(alternative) |
| 7 | Excellent flexibility and comfort |
Specifications:
| Product Name: | ESD Rubber Mat |
| Model Number: | SC-Green-2mm |
| Material: | Rubber |
| Surface Resistance: | Top dissipative layer: 10E3-10E5 ohms |
| Bottom conductive layer: 10E6-10E9 ohms | |
| Thickness: 2mm | Top dissipative layer: 0.5mm |
| Bottom conductive layer: 1.5mm | |
| 1.6mm-5mm thickness are available | |
| Width: | 0.3m-1.5m |
| Length: | 10m, 15m, 20m, 25m, 30m per roll |
| Color: | Light Green, Green, Dark Green |
| Light Blue, Blue, Dark Blue | |
| Gray, Brown, Black, Yellow | |
| any color as required | |
| Decay Time: | <0.1 second |
| Abrasive Loss: | <0.02 |
| Gross Weight: | about 3kg/square meter |
| 30kg/roll for size:T2mmxW1.0mxL10m | |
| Certificate: | SGS, RoHS |
Applications:
| 1 | Tabletop use to provide a static safe work surface for static sensitive products in Aviation |
| 2 | Clean-rooms, computer Operators, Computer Technicians, Fiber Optic, Hospitals, and Pharmaceutical Industries in the high-temperature setting. |
| 3 | Aerospace Assembly, Electronic Manufacturing, Electronic Repair, Medical Assembly and Soldering. |

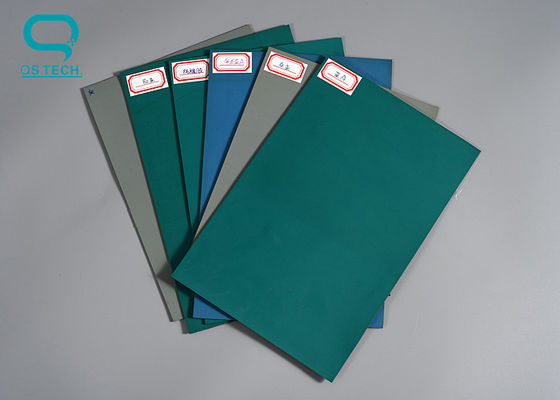

Picture:
FAQ
1. Q: Do you have MOQ ?
A: The MOQ is 200 units.
2. Q: If i need one sample do I need to paid for it and how long will I get the sample ?
A: We will prepare the sample for you within 5 days, the sample cost is free for you and freight fee will be paid by you.
3. Q: If I have special require on color and logo can you do that ?
A: Any colors you prefer for we can changed the color as your requirement,and also we can put your logo or mark on the products.
4. Q: What is your terms of payment ?
A: We can accept TT payment or the LC at sight payment.
5. Q:How long will the cargos take for delivery?
A:It will take us around 25-30 days to finish all the production.
6. Q:Do you provide the warranty ?office chair
A:Yes we are the factory which focus on the products quality, we always provide half years guarantee to our customers.
