Product Details:
Payment & Shipping Terms:
|
| Item Name: | Anti-static Clothing | Material: | High-density Fabric |
|---|---|---|---|
| Feature: | Functionality ,Comfort, Durability | Advantage: | Knitting 0.5 Stripes |
| Color: | Yellow,white,blue | Composition: | T/C 65%/35% |
| WEIGHT: | 240g/m2 | ||
| High Light: | dustfree anti static clothing,240g/m2 anti static clothing,warp anti static clothing |
||
Warp 110 Knitting 0.5 Stripes Functionality Comfort Durability Dust-free Anti-static Clothing
Features:
1. Surface resistivity: 1x105-109 Ω
2. Friction voltage: less than 100V (special mesh)
3. Electrostatic dissipation time: 500V reduced to 500V less than 0.1 S
4. The dynamic dust volume (= 0.5 mu m) is less than or equal to 500ea/ft3 CLASS100 ~ 1000
Anti-static fabric parameter table:
| ITEM | T/C THICK | T/C THIN | Knitting Conductive |
| COMPOSITION | T/C 65%/35% | T/C 65%/35% | Polyester 100% |
| STRUCTURE | 2/1 twill 1.5mm interval of conductive filament | /1 twill 1.5mm interval of conductive filament | Warp-knitted |
| WEIGHT | 240g/m2 | 140g/m2 | 100g/m2 |
| THICKNESS | 0.45mm | 0.28mm | 0.30mm |
| WIDTH | 150cm | 150cm | 170cm |
| DENSITY |
Warp 110 Weft 56 |
Warp 110 Weft 56 |
Weft 32 |
| YARNTYPE |
Warp T/C J34s/2 Weft T/C J34s/2 |
Warp T/C J34s Weft T/C J34s |
68D |
| SURFACE RESISTIVITY | 108~1010Ω/unit | 108~1010Ω/unit | 108~1010Ω/unit |
| ELECTRICATION POTENTIAL | 4.24µc/m2 | 4.15µc/m2 | 0.1µc/m2 |
| DECAY TIME | 2.0s | 2.0c | 0.1c |
| AIR PERMEABILITY | 45c.c/cm2/sec | 150c.c/cm2/sec | 300c.c/cm2/sec |
| TENSILE STRENGTH |
Warp 770N Weft 1720N |
Warp 770N Weft 1720N |
/ |
| TEAR STRENGTH |
Warp 3970gf Weft5310gf |
Warp 2550gf Weft 3300gf |
/ |
| COLOR RETENTION | 4~5 | ||
Application areas:
Semiconductors, optoelectronic displays, microelectronics, sensitive electronic components, military industry, medical treatment, biological engineering, pharmaceuticals, food processing, etc.
Quality Control:
Anti-static dust-free clothing is the main body equipment for anti-static and dust-proof. Professionals research and develop anti-static dust-free fabrics and monitor the entire production process to ensure the stability of quality; years of production experience is that we can more closely consider customers in terms of style design and detail production. Xinlun Technology's anti-static dust-free clothing scientifically integrates functionality, comfort, durability and aesthetics according to the needs of the industry, providing first-class security and services for your clean room environment and static control.

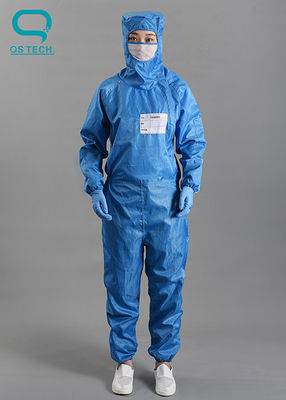

Picture:
