Product Details:
Payment & Shipping Terms:
|
Application: | Cleanroom | Color: | Blue Or White |
---|---|---|---|
Size: | 18'x36', 24'x36', 26'x45' | Layers: | 30 |
Class: | 100 | Packing: | 30sheets Per Mat,10mats Per Box,5boxes Per Carton |
Highlight: | IOS9001 clean room sticky floor mats,32 Layer esd floor mat,Aerospace clean room sticky floor mats |

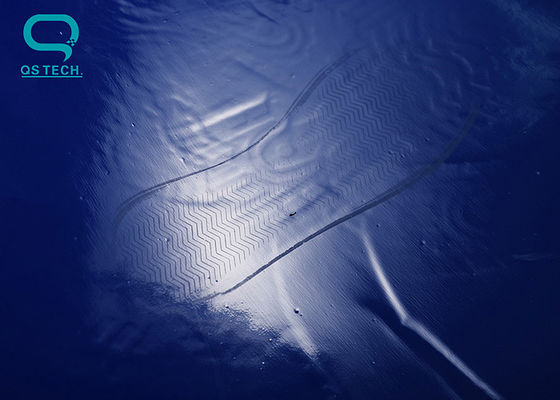

anti static clean room sticky floor mats
Product description
Sticky mat actual there are 32 layer, there are 30 layer left or lower right corner has 1 to 20 or 30 to 1, in order to change, the first layer is no plastic transparent PE film + 29 layer coating PE film (usually blue or white, other colorcan be customized) + 1 layer coating double sky-blue PE protection compound and into, double the mask of the first layer is the sky blue, with 30 or above 1 digital label, without glue layer 2 is transparent PE film and glue layer PE film on each floor with 1-29 or 29-1 digital label.
Cleanroom sticky floor mats is a self-adhesive dust-removing product formed by the multi-layer Low Density Polyethylene Film materials.
Cleanroom sticky floor mats has super viscidity .Each layer is attached with a high viscosity coating, smooth and durable, can quickly and effectively remove dirt, dust to keep the working environment clean.
Apecification field for cleanroom sticky mats
1. Semiconductor industry
2. Electronics industry
3. Biological medicine
4. Aerospace
5. Hospital operating room
6. Food processing industry
7. High-end hotel
8. Hotel or family, etc
Detailed parameters for cleanroom sticky mats
The base materia | 35 ~ 50 mu m thick coating PE | ![]() |
![]() |
The gluing thickness | 5~7μm | ||
The layer number of the product | 30 / piece | ||
The thickness of the product | 1.55~1.8 mm/ | ||
Product color | Blue or white | ||
Dedusting effect | 99.9% | ||
180 degree stripping strength | 300g-350g / 25mm (gb2792-98) viscosity increases or decreases | ||
At the beginning of viscous fluid | > 50mm (gb4852-2002 stickiness test method, ball bearing method) | ||
A viscous | 1440(24h)(GB4851-98) | ||
Product specification | 18″×36″,24″×36″ ,24″×45″,26″×45″ | ||
Remark: the specification can be made according to customer's requirement. |
Usage for cleanroom sticky mats
This product is composed of 30 layers of PE film, with 1-30 # in the lower left corner of each layer for replacement. When using, first remove the protective layer from the opening at the back of the surface, and then place the flat surface on the clean and non-watermark floor. And along the edge of emulsion with sole pressing, and then from the positive opening off protective layer, so you can use, if you use in the process of the surface of the film adhesive is full of dust, just scraped through opening this layer, so that you can use the next layer of the pure film.
