Product Details:
Payment & Shipping Terms:
|
| Size: | 18'x36', 24'x36', 26'x45' | Color: | Black, Blue, Gray, Transparent,White |
|---|---|---|---|
| Class: | 100 | Model: | QS-ncd01 |
| Package: | 10pcs/box,5boxes/ctn | Application: | Cleanroom |
| Adhesive Material: | LDPE | Tackiness: | High,Low,Medium |
| High Light: | Pull Off Cleanroom Sticky Mats,30 Layers Cleanroom Sticky Mats,Multicolor Cleanroom Sticky Mats |
||
30 Layers Pull-Off Dust-Free Room Multi-Color Sticky Mats
1. Production description
| Item Name | Cleanroom Sticky Mat |
| Adhesive Thickness | 8μm |
| Layers | 30 layers |
| Film Material | LDPE |
| Adhesive Material | Water-based acrylic |
| Film Thicknes | 35μm,40μm,45μm,50μm |
| Tensile Strength | ≥1.2kg/cm |
| Color | Black, Blue, Gray, Transparent,White |
| Size | 18'x36', 24'x36', 26'x45' |
2. Technical Data
| NO. | inspection items | test standard | inspection result |
| 1 | longitudinal tensile strength (MPA) | ≥10 | 20 |
| 2 | transverse tensile strength (MPA) | ≥8 | 17 |
| 3 | longitudinal elongation at break (%) | ≥150 | 210 |
| 4 | horizontal elongation at break (%) | ≥200 | 255 |
| 5 | State of glue | Light evenly | |
| 6 | thickness | Plus or minus 0.005 | 0.035MM |
| 7 | Early viscous force (G/IN2) | LOOPTACK | 500 |
| 8 | 180 degrees peel strength (SS. G / 25 mm) | GB2792-81 | 380 |
| 9 | The viscosity (MIN) | GB4851-98 | 1440 |
| 10 | Resistance to high temperature and high humidity test | Q/DT1-2004 | 80 degrees |
| 11 | Heat resistant experiment | Q/DT1-2004 | |
| 12 | Aging performance | Q/DT1-2004 | 8 months |
3. Usage:
1. Clean the floor and remove the 30th layer of transparent non-stick protective layer before use.
2. Attach the bottom adhesive pad to the floor or backplane. Secure one side of the adhesive pad to the ground.
3. Tear off the film on the surface and it is ready to use.
When the surface film is used and dirty, peel off the current film and move on to the next one.

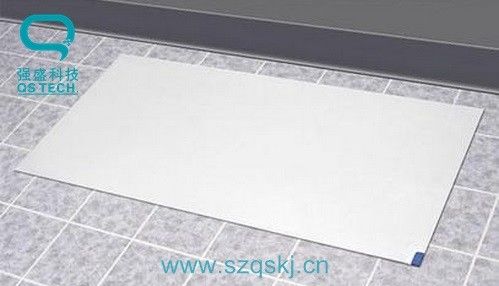

4. Picture
