Product Details:
Payment & Shipping Terms:
|
| Item Name: | Antistatic Wrist Straps | Size: | 2m Line |
|---|---|---|---|
| ESD: | 10e6-9 Ohm | Material: | PU |
| Features: | Dustproof,antistatic, ESD Safe | Packing: | 1pc/card |
| High Light: | ESD Anti Static Wrist Strap,Electronics Factory Grounding Conductive Wire,Grounding Conductive Wire Anti Static |
||

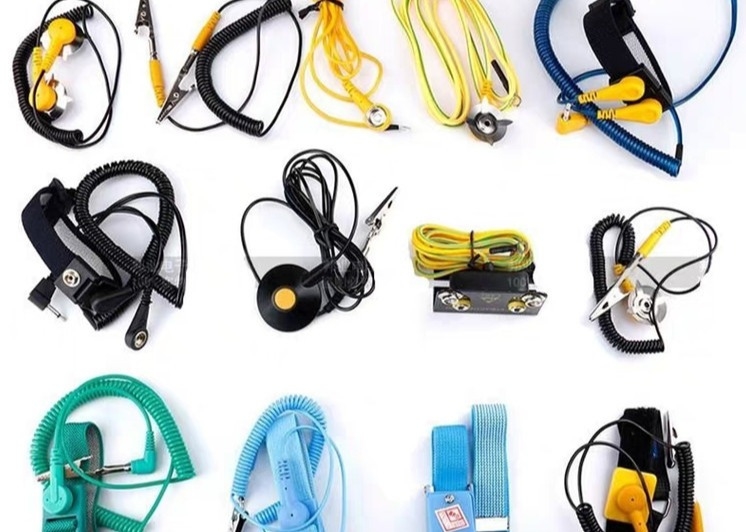

ESD Wrist Straps are used to prevent electrostatic discharge (ESD) by safely grounding a person working with electronic components.
ESD Fabric Wrist Straps are made of polyester with silver plated nylon fabric with a hypoallergenic silver-plated nylon thread for conductivity. The band is standard with a 4mm snap. The polyurethane coil insulation offers excellent coil memory. A swivel type banana jack increases coil life and prevents cord tangles. The soft woven fabric and curved buckle of the wrist band allows the skin to breathe and makes it very comfortable to wear. It has a maximum resistance of 160 ohms.
ESD Metal Wrist Straps are premium grade ESD wrist straps featuring a high quality metal wrist band with an insulating outer surface and stainless steel inner surface and a coil cord. The band is standard with a 4mm, machined male snap and provides a 360 degree conductive contact around the wrist, providing maximum skin contact. A shorter, swivel type banana jack increases coil life, prevents cord tangles and fits most bench grounds. It uses highly conductive copper sulfide nylon thread for conductivity and has a maximum resistance of 160 ohms.
Applications: Aerospace Assembly, Computer Operators, Electronic Assembly and Repair, and Solar Industries.
1. product manual:

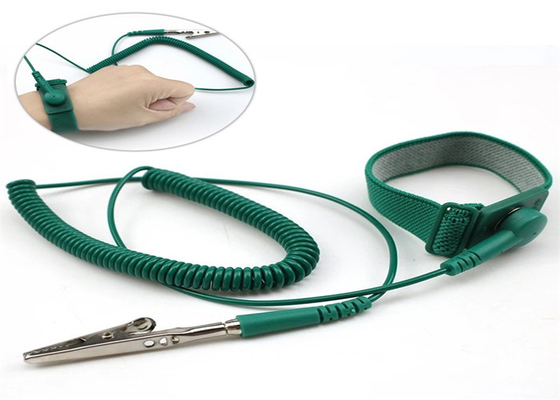

The anti-static wrist strap is a protective device that is worn on the human wrist to release the electrostatic charge accumulated on the human body.
| Item | antistatic Wrist Strap |
| Color | Green |
| Material | PU |
| ESD | 1x10e6-9 |
| Line length | 2m |
| Cords: | PU outside |
| Straps Material | Adjustable Fabric |
| Packing | 1pc/card |
2.Product parameters:
Product name: Wired anti-static bracelet
Color: Yellow
Wrist band impedance: <42 Ω
Line length: Stretch about 1.8m
Material: Elastic nylon silk and copper ion complex conductive yarn braided +PVC material
Applicable: work, maintenance
Packing: vacuum bag
Coiling: bright color, good elasticity, PVC material outer skin, inner cored copper platinum wire, 1MΩ resistance;
Ribbon color: silver yarn
Male buckle type: copper buckle
3.Picture:
