Product Details:
Payment & Shipping Terms:
|
| Application: | SMT Machine | Material: | Non-woven Fabric |
|---|---|---|---|
| Usage: | Cleaning | Packing: | 1 Roll Per PVC Bag |
| Weight: | 68gsm, 65gsm , 60gsm , 56gsm | OEM: | Available |

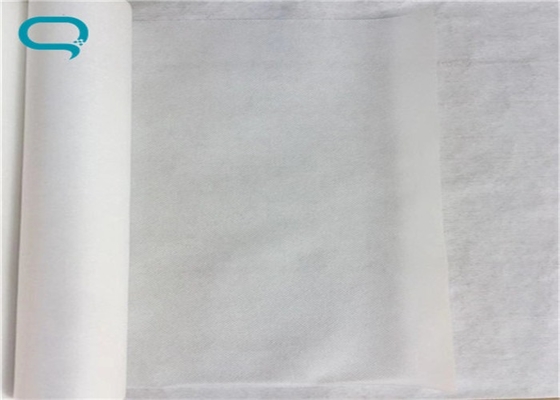

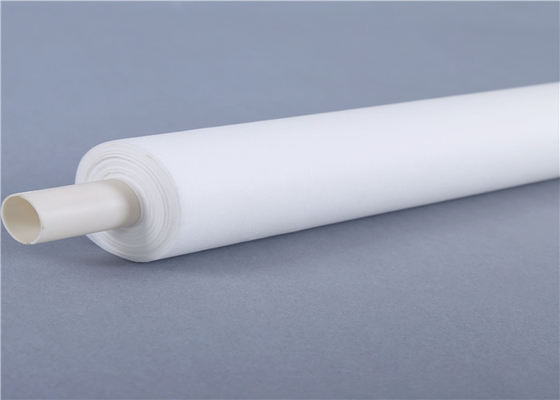

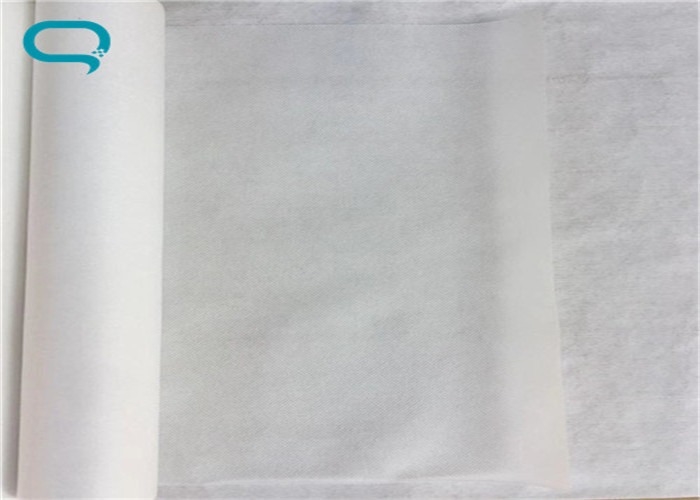

1). Roll type design,made of dust free paper and inner roller.We can make the customised paper length,width,inner core diameter and length according to customers' special requiest.
2). It has some advantages,such as super oil & water absorbency, low particle generation,no dust,no scratches on the surface, super suppleness, strong tensile strength, no chemical binders,chemical resistance, Low villus fall off, good breathability,uniformity of thickness.
2.Specification
| Item | SMT Stencil Wiper Rolls For Printing Machine |
| Material | 45%Wood pulp ,55%polyester |
| Inner core material | Plastic or paper or customized upon request. |
| Size | As per your requirement |
| Color | White |
| Weight | 68g /m2, 65g /m2, 60g /m2, 56g /m2, 50g/m2 |
| Package | PVC Individual package for each roll |
| OEM | Logo,size,weight,packing,inner core material Available |
| Samples | Available |
Suitable For Different Type SMT Machine
| Application Machine Type | SMT Silk Screen Roller Wipes Spec.(mm x m) | Paper tube/Rubber tube Core(mm) |
| MPM | 300x10 | 19.5x455 |
| MPM | 443x10 | 19.5x455 |
| MPM | 600x10 | 19.5x615 |
| DEK | 300x10 | 19.5x530 |
| DEK | 350x10 | 19.5x530 |
| DEK | 490x7 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 510x9 | 19.5x530 |
| DEK | 520x10 | 19.5x530 |
| MINAMI | 270x5 | 8x290 |
| MINAMI | 350x6 | 8x370 |
| KME | 200x30 | 38x350 |
| KME | 270x30 | 38x270 |
| KME | 340x15 | 19.5x350 |
| KME | 480x30 | 38x480 |
| KME | 545x15 | 19.5x545 |
| PANASONIC | 270 x 10 | 38 X 280 |
| PANASONIC | 360x10 | 38x360 |
| PANASONIC | 350x20 | 38x355 |
| FUJI | 400x11 | 25x400 |
| FUJI | 500x11 | 25x500 |
| PANA | 360x12 | 38x360 |
| PANA | 410x36 | 38x410 |
| YAMAHA | 410x30 | 25.5x420 |
| YAMAHA | 350x10 | 25.5x350 |
| EKRA | 300x8 | 13.5x300 |
| EKRA | 450x8 | 13.5x450 |
| ASKA | 350x8 | 14x450 |
| ASKA | 430x8 | 14x450 |
| SAMSUNG | 400x7 | 20x460 |
| More other sizes available upon request! | ||
